35mm Hubcentric Wheel Spacers For Navara D40 D23 6x114.3 66.1CB M12x1.25 2PCS
$138.00
$198.00
Sale ends in
--:--:--
—
Pickup available at Yara Auto Parts
Usually ready in 24 hours
Details
35mm Hubcentric Wheel Spacers For Navara D40 D23 6x114.3 66.1CB M12x1.25 2PCS
✨ Quick Specs
- ✔️ Quantity: 2 Wheel Spacers
- ✔️ Thickness: 35mm Per Spacer
- ✔️ PCD: 6x114.3 to 6x114.3
- ✔️ Centre Bore: 66.1mm
- ✔️ Stud Thread: M12x1.25
- ✔️ Type: Hubcentric Bolt-On Stud Type
- ✔️ Finish: Black
- ✔️ Included: 12 × M12x1.25 Mounting Nuts
- ✔️ Fitment: Front or Rear Only If All Specs Match
Important: This is a 2PCS pair set, suitable for one axle only. Your vehicle must use 6x114.3 PCD, 66.1mm centre bore and M12x1.25 wheel studs. Vehicle model and year alone do not guarantee fitment.
Safety & Fitment Declaration
Wheel spacers are safety-critical components. Incorrect fitment or installation may cause vibration, wheel loosening, bearing stress, tyre contact, handling issues or serious vehicle damage.
- Professional installation is strongly recommended.
- Do not install if the PCD, centre bore, stud thread or wheel clearance does not match exactly.
- The spacer must sit completely flat against the vehicle hub.
- The wheel must sit completely flat against the spacer before tightening.
- Original wheel studs may extend beyond the face of the 35mm spacer on some setups.
- The back of the wheel must have sufficient recesses to clear the original studs if they protrude.
- Do not stack wheel spacers.
- Check brake caliper, suspension, guard and tyre clearance before driving.
- Use the correct torque specification for your vehicle and wheels.
- Re-torque all nuts after 50–100km of driving and inspect regularly.
- Check your local road regulations before use, as wheel spacer legality may vary by state or territory.
- The buyer and installer are responsible for confirming safe and legal fitment before use.
Give your compatible ute or 4WD a wider and more aggressive stance with this pair of 35mm Hubcentric Bolt-On Wheel Spacers.
Each spacer moves the wheel outward by approximately 35mm, helping improve wheel positioning when correctly matched to your vehicle, wheel offset and tyre setup.

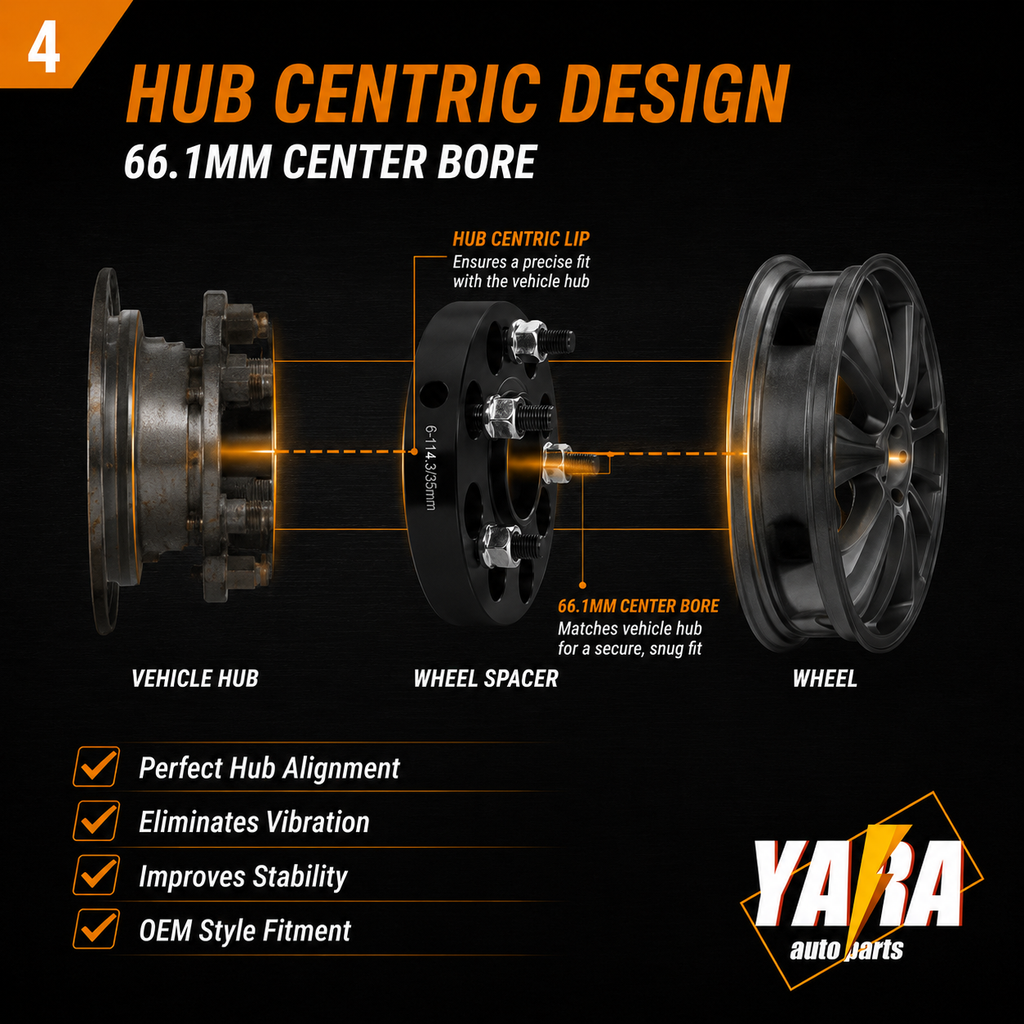

The 66.1mm hubcentric design helps locate the spacer on compatible hubs, while the bolt-on stud setup allows the spacer to be secured to the original vehicle studs using the supplied M12x1.25 mounting nuts.
Why Choose These Wheel Spacers?
- 🎯 Hubcentric 66.1mm Design: Designed to locate on compatible 66.1mm hubs for improved centering.
- 🔩 Bolt-On Stud Type: Spacers bolt to the original studs, with the wheels then mounted onto the spacer studs.
- 📏 35mm Per Side: Moves each wheel outward by approximately 35mm for a wider stance.
- 📦 2PCS Pair Set: Includes 2 spacers and 12 matching M12x1.25 mounting nuts.

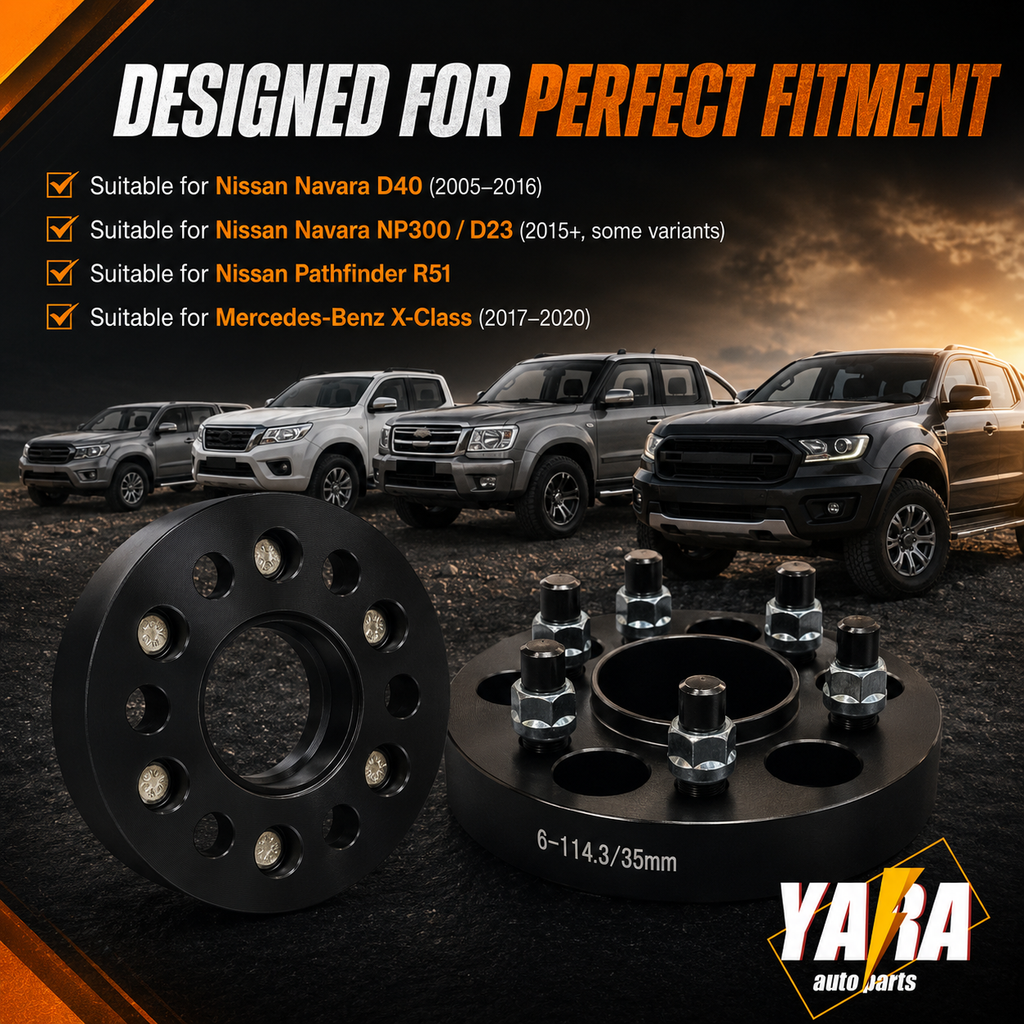

🚘 Vehicle Compatibility
Suitable for selected vehicles originally equipped with 6x114.3 PCD, 66.1mm centre bore and M12x1.25 wheel studs.
The table below is a compatibility guide only. Vehicle model and year alone do not guarantee fitment.
| Brand | Model | Years / Series | Fitment Status | Important Notes |
|---|---|---|---|---|
| Nissan | Navara D40 | 2005–2016 | High Compatibility | Main recommended application. Confirm 6x114.3, 66.1CB, M12x1.25 and wheel clearance before fitting. |
| Nissan | Navara NP300 / D23 | 2015–Current, selected variants | High Compatibility / Confirm Variant | Check wheel offset, tyre-to-guard clearance and brake clearance after adding 35mm per side. |
| Nissan | Pathfinder R51 | 2005–2016 | High Compatibility | Confirm 66.1mm centre bore and M12x1.25 stud thread before ordering. |
| Mercedes-Benz | X-Class | 2017–2020 | Conditional / Confirm Variant | Confirm exact hub, wheel, brake and guard clearance. Some trims or aftermarket wheels may vary. |
Important: Always confirm the actual vehicle PCD, hub bore, stud thread, wheel centre bore, wheel mounting pad and clearance before ordering or installation.

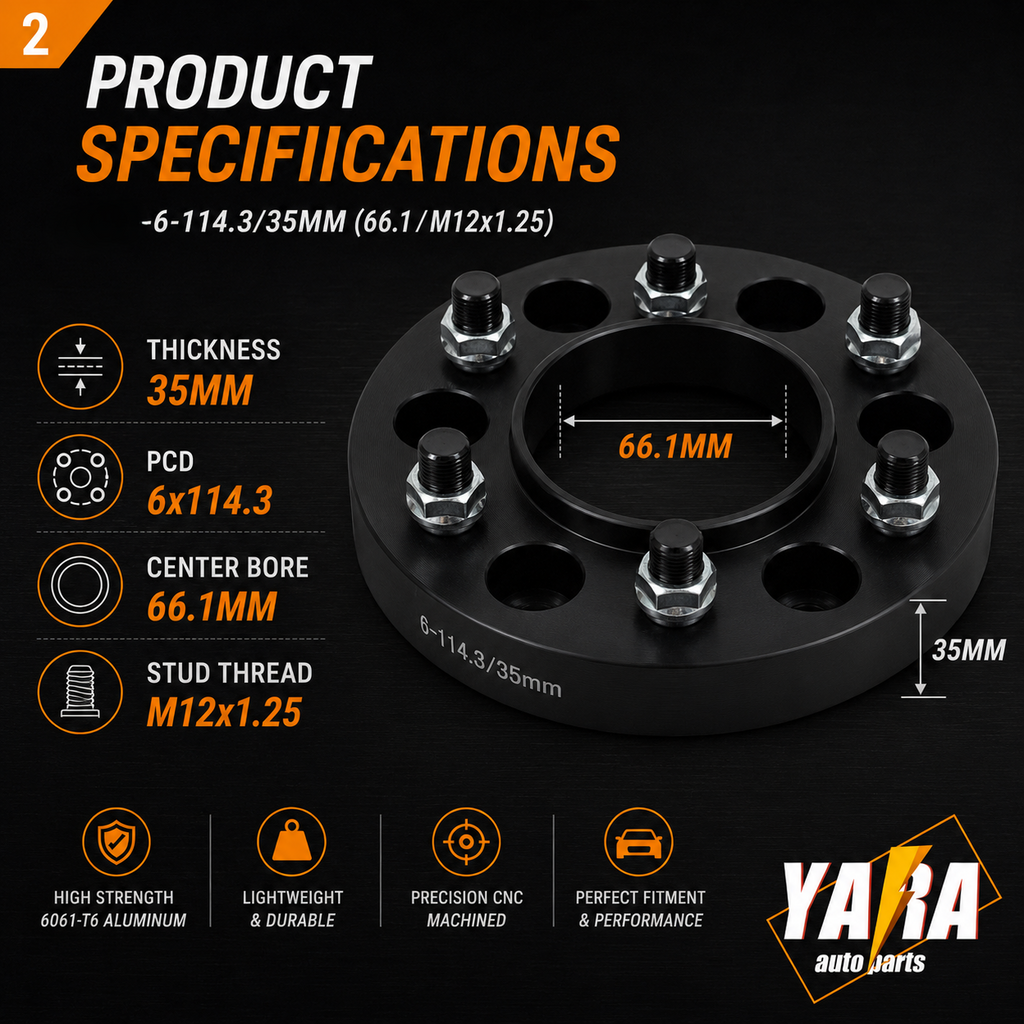

📋 Detailed Specifications
- Quantity: 2 Pieces
- Spacer Thickness: 35mm Each
- Vehicle-Side PCD: 6x114.3
- Wheel-Side PCD: 6x114.3
- Centre Bore: 66.1mm
- Stud Thread: M12x1.25
- Mounting Type: Bolt-On Stud Type
- Design: Hubcentric
- Finish: Black
These are straight spacers, not PCD adapters. The vehicle and wheel must both use a 6x114.3 stud pattern.

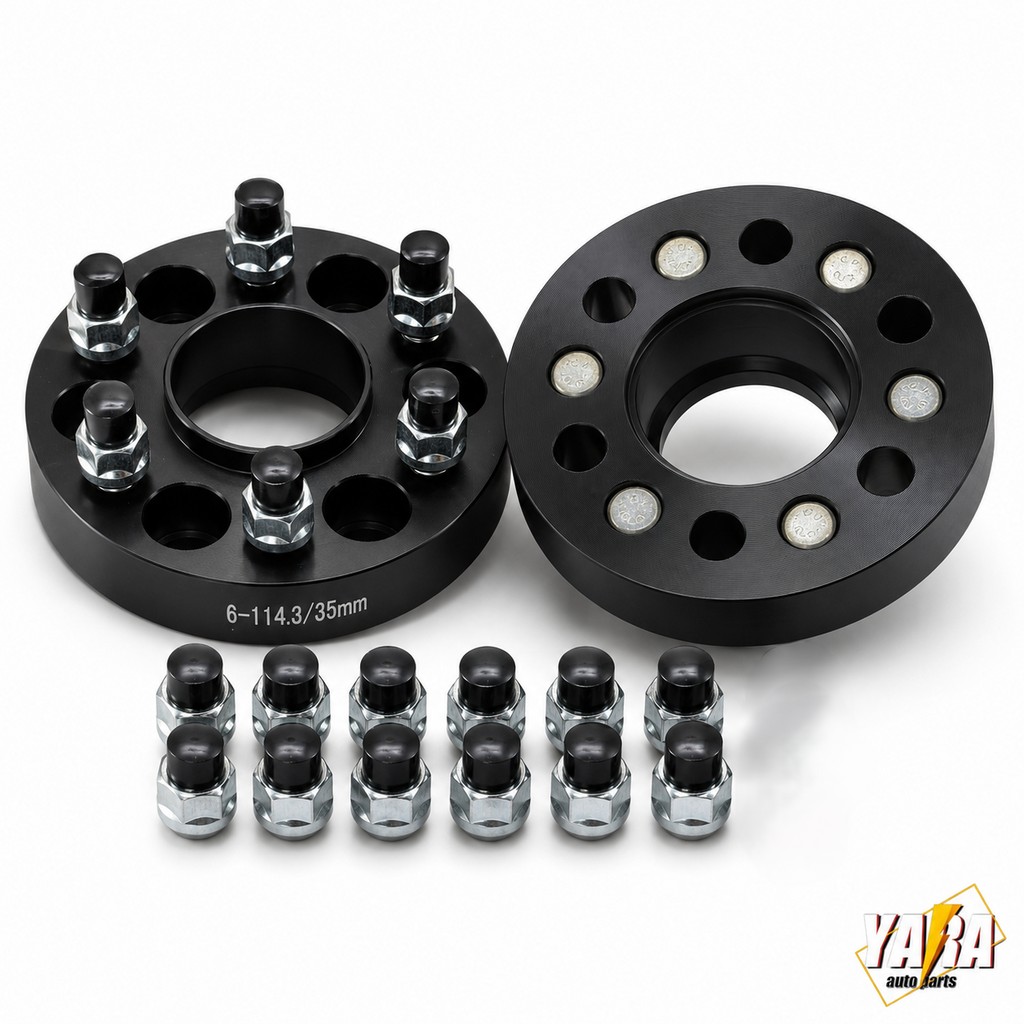

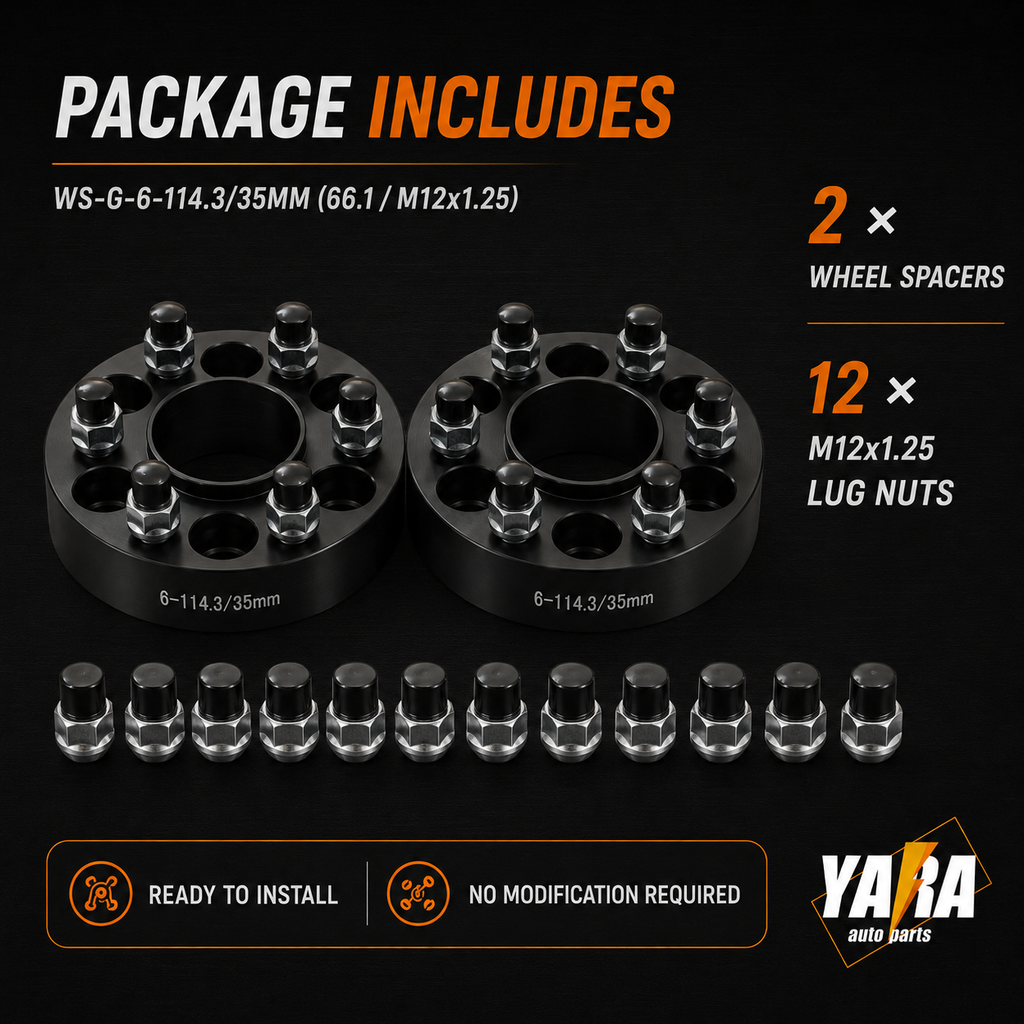

📦 What’s in the Box?
- 2 × 35mm Hubcentric Wheel Spacers
- 12 × M12x1.25 Mounting Nuts
Only the items shown and listed are included.
🔍 Checks Required Before Ordering
Please verify all of the following before purchase:
- The original vehicle PCD is exactly 6x114.3.
- The vehicle hub centre bore is exactly 66.1mm.
- The original wheel stud thread is M12x1.25.
- The wheel uses a compatible 6x114.3 stud pattern.
- The wheel centre bore and rear mounting pad are suitable.
- There is enough guard, brake, suspension and tyre clearance after adding 35mm per side.
- The spacer sits completely flush against the hub.
- The wheel sits completely flush against the spacer.
- The back of the wheel has enough recess clearance if the original studs protrude past the spacer face.
Do not install the product if any measurement, surface contact or clearance does not match correctly.
❌ Not Suitable For
- Vehicles using 6x139.7 PCD.
- Vehicles using M12x1.5, M14x1.5 or any thread other than M12x1.25.
- Vehicles with a centre bore that does not match 66.1mm.
- Any wheel without sufficient rear recess clearance if original studs protrude.
- Any setup where the spacer or wheel cannot sit completely flush.
- Any vehicle with insufficient brake, suspension, guard or tyre clearance after adding 35mm per side.
🔧 Fitting & Installation
- Park the vehicle securely on a flat surface.
- Remove the wheel and clean the original hub mounting surface.
- Position the spacer against the hub.
- Confirm that the spacer sits completely flat against the hub.
- Install the supplied M12x1.25 mounting nuts.
- Tighten gradually using a diagonal or star pattern.
- Confirm original studs do not interfere with the back of the wheel.
- Install the wheel onto the spacer studs.
- Tighten all wheel nuts to the specified torque.
- Recheck and re-torque all fasteners after approximately 50–100km.
Professional installation is strongly recommended.
Never stack wheel spacers. Do not drive if the spacer or wheel does not sit completely flush. Check all fasteners regularly as part of normal vehicle maintenance.
❓ Frequently Asked Questions
Is this listing for 2 spacers or 4 spacers?
It includes 2 spacers and 12 mounting nuts.
Can I install them on the front?
Yes, they may be installed on the front only if the vehicle hub, brake clearance, wheel clearance, tyre clearance and local legal requirements are confirmed.
Can I install them on the rear?
Yes, they may be installed on the rear only if all specifications and clearances match.
Will these fit every Navara D23?
No. Your vehicle must match 6x114.3 PCD, 66.1mm centre bore and M12x1.25 wheel studs.
Will these fit 6x139.7 vehicles?
No. This product is 6x114.3 and will not fit 6x139.7 vehicles.
Are these PCD adapters?
No. These are 6x114.3 to 6x114.3 wheel spacers and do not convert the stud pattern.
What happens if the original studs stick out past the spacer?
The back of the wheel must have suitable recesses to clear the original studs. Do not install if the wheel cannot sit completely flush.
Can I stack two spacers together?
No. Wheel spacers must never be stacked.
Do the spacers need to be re-torqued?
Yes. All fasteners should be checked and re-torqued after approximately 50–100km and inspected regularly afterwards.
🛡️ Warranty Information
This product is covered against manufacturing defects under our applicable warranty policy.
The warranty does not cover incorrect fitment, improper installation, incorrect torque, impact damage, motorsport use, vehicle modification, stacked spacers, wheel clearance issues, legal compliance issues or normal wear and tear.
🚚 Shipping & Returns
Fast Dispatch: Orders are generally processed and dispatched within 24–48 business hours.
Inspect Before Installation: Please check all measurements and inspect the product before installation.
Returns: Please check all specifications before installation. Products that have been installed, marked, modified or damaged may not be eligible for change-of-mind return.
Please contact our customer service team before returning an item to confirm eligibility and receive return instructions.
